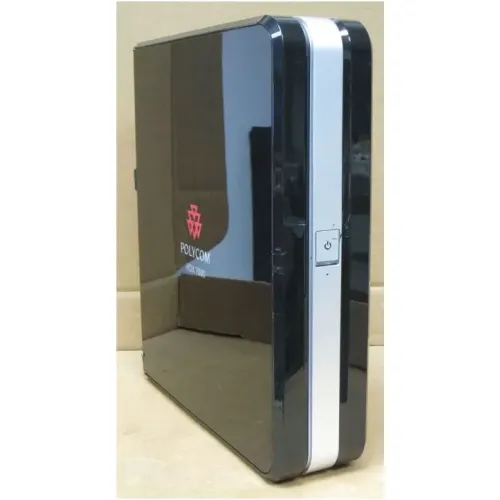

Polycom HDX 7000 Video Conferencing System Kit

Description:

The Polycom® HDX® 7000 series systems provides flexible, affordable HD video conferencing for high-quality communication throughout mainstream workplace environments. Expanding the utility of visual communication quickly and easily, HDX 7000 telepresence systems are ideal for education, medical, enterprise and on-demand collaboration applications.

Specifications

Video standards and protocols

• H.264, H.264 High Profile IP, H.263++, H.261

• H.239/Polycom People+Content

• H.263 & H.264 Video Error Concealment

• 1 x Polycom® EagleEye™ HD camera

• 1 x S-Video

• 1 x DVI-I

• 2 x DVI-I HD video out

• 720p, 30 fps from 512 Kbps

• 720p, 60 fps from 832 Kbps

• 1080p, 30 fps from 1024 Kbps

• 4SIF/4CIF, 30 fps from 128 Kbps

• 4SIF/4CIF, 60 fps from 512 Kbps

• SIF (352 x 240), CIF (352 x 288)

• QSIF (176 x 120), QCIF (176 x 144)

• Resolutions supported: HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)

• Output: 720p (1280 x 720), 1080 (1920 x 1080), XGA (1024 x 768), SVGA (800 x 600)

• Content Frame Rate: 5–30 fps

• Content Sharing: People+Content and People+Content IP

• 2 x HDX microphone arrays supported

• 1 x Line-level stereo in (RCA)

• 1 x 3.5mm stereo mini (PC Audio)

• 1 x VCR/DVD stereo audio-in (RCA)

• 1 x stereo output (RCA)

• Polycom® StereoSurround™

• 22 kHz bandwidth with Polycom® Siren™ 22 technology

• 14 kHz bandwidth with Polycom® Siren™ 14 technology, G.722.1 Annex C

• 7 kHz bandwidth with G.722, G.722.1

• 3.4 kHz bandwidth with G.711, G.728, G.729A

• Automatic gain control

• Automatic noise suppression

• Keyboard noise reduction

• Polycom® MusicMode™

• Instant adaptation echo cancellation

• Audio error concealment

• Polycom® Siren™ Lost Packet Recovery

• H.221, H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.331, H.239, H.231, H.243, H.460, BONDING, Mode 1

• BFCP (RFC 4562)

• TIP

• Polycom® iPriority™ for QoS

• 10/100 auto NIC (RJ45)

• Auto-MDIX

• H.323 and/or SIP up to 4 Mbps

• Polycom® Lost Packet Recovery™ (LPR™) technology

• Reconfigurable MTU size (IP only)

• SIP Firewall Traversal (Acme Packet)

• RS232

• Camera control

• Data pass-through

• Audio mixer control

• Full serial API support

• H.320 (Optional)

• ISDN Quad BRI, PRI T1 or E1

• Serial (RS449, V.35 RS530 with RS366 dialing)

• Auto SPID detection and line number configuration

• Microsoft® Office Communications Server integration

• Microsoft® ICE support

• Micosoft® Lync™ support

• IBM® Sametime™ support

• Directory services

• Polycom® SmartPairing™ technology

• System management -- Web-based, SNMP, Polycom® Coverged Management Applications™ (CMA®) technology

• CDR

• International languages (16)

• Wildcard language tool

• USB software update

• Secure web

• Security mode

• AES FIPS 197, H.235V3 and H.233/234

• FIPS 140-2 Validation Certificate (/returns-policy918)

• IPv6 (DISA)

• Secure password authentication

• Auto sensing power supply

• Typical operating voltage/power - 189VA @ 115V @ 60 Hz @ .67 PF, 192VA @ 230V @ 60 Hz @ .66 PF, 196VA @ 230V @ 50 Hz @ .65 PF

• Operating temperature: 0–40°C

• Operating humidity: 10–80%

• Non-operating temperature: -40–70°C

• Non-operating humidity (non-condensing): 10–90%

• Maximum altitude: 10,000 feet

• HDX 7000 base box with removable stand: 13.9” x 5.1” x 11” (H x W x D standing

In the box:

• Polycom HDX 7000 HD PAL CODEC - 1

• Polycom Eagle Eye Pan/Tilt/Zoom Camera - 1

• Polycom HDX Table Top Microphone - 1

• Remote Control - 1

• Required cables(Camera cable, Mic cable, Component Cable) - 1
