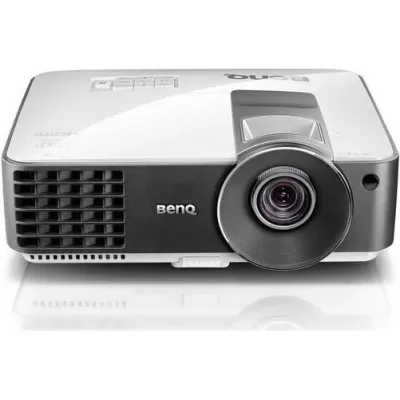

BenQ MW817ST DLP Projector

BenQ MW817ST DLP Projector

General Specifications:

• Model: BenQ MW817ST
• Projection Technology: DLP (Digital Light Processing)
• Native Resolution: WXGA (1280 x 800)
• Brightness: 3,200 ANSI Lumens
• Contrast Ratio: 13,000:1
• Aspect Ratio: 16:10 (native), supports 16:9, 4:3

Lamp Specifications:

• Lamp Type: 240W
• Lamp Life:
  • Normal Mode: Up to 4,000 hours
  • Eco Mode: Up to 10,000 hours

Projection Details:

• Throw Ratio: 0.69:1 (Ultra-short throw)
• Zoom: Fixed lens (no optical zoom)
• Keystone Correction:
  • Vertical: ±40 degrees
• Screen Size: 60 inches to 100 inches (diagonal)
• Projection Distance: 0.5m - 2.5m (varies by screen size)

Connectivity:

• Inputs:
  • 2 x HDMI
  • 1 x VGA (D-Sub 15-pin)
  • 1 x Composite Video (RCA)
  • 1 x S-Video
  • 1 x Audio In (3.5mm Stereo Mini Jack)
  • 1 x Audio In (RCA L/R)
  • 1 x USB Type-A (for power, 5V/1.5A)
  • 1 x USB Type-B (for service)
• Outputs:
  • 1 x VGA (D-Sub 15-pin, Monitor Out)
  • 1 x Audio Out (3.5mm Stereo Mini Jack)
• Control Ports:
  • 1 x RS232 (DB-9)
  • 1 x RJ45 (LAN)
  • 1 x 12V Trigger

Audio:

• Built-in Speaker: 10W (Mono)

Power:

• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption:
  • Normal Mode: 290W
  • Eco Mode: 230W
  • Standby: <0.5W

Dimensions and Weight:

• Dimensions (W x H x D): 337 x 114 x 252 mm (13.3 x 4.5 x 9.9 inches)
• Weight: 3.2 kg (7.1 lbs)
